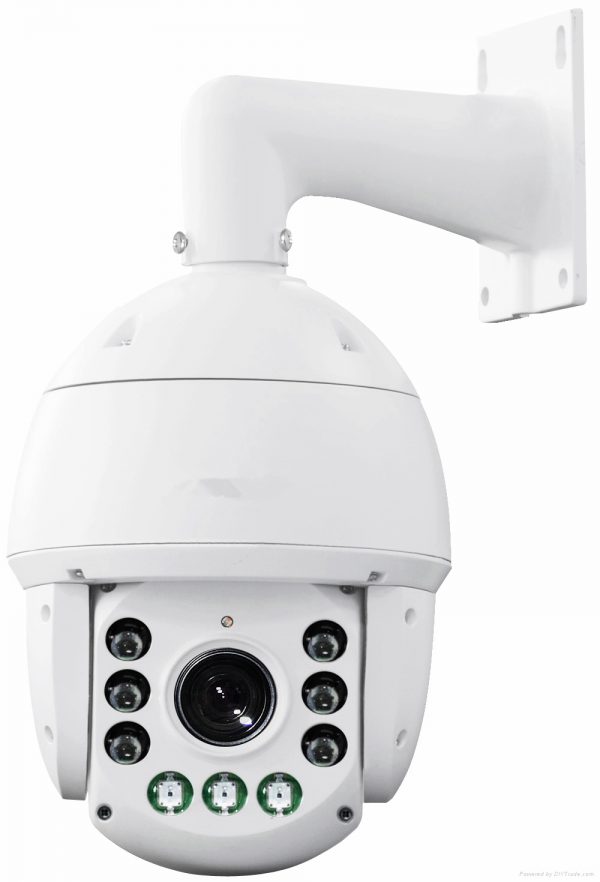

AHD 1.0MP Dome Camera T Series SD-FA6110T-X18R
SKU:
- 1.3MP 1/3″ Low-illumination sensor;
- HD 720P Resolution, Image clear, Delicate;
- Day/Night(Auto ICR);
- Auto electronic shutter time;
- IR range: 9 led lambs 120m;
- 18x optical zoom;
- Ingress Protection：IP66;
- Support DWDR, 3D DNR;
- 500 m transmission without delay;
Scenarios：
Apply for road,warehouse,underground parking lot,bar,pipeline and somewhere where require HD images but with dark light and poor sunshine.
Model：
SD-FA6110T-X18R
EGP1.00
| Model | SD-FA6110T-X18R | |
| Camera | sensor | 1.3MP 1/3″ Low illumination CMOS |
| Signal | [email protected] | |
| Video format | PAL/NTSC | |
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR | |
| B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR | ||
| Shutter time | automatic | |
| Max. Image | 1280*720 | |
| Day&Night | IR cut filter with auto switch | |
| Lens | Aperture | F1.6 to F3.5 |
| Focal length | 4.7mm～84.6mm | |
| Optical zoom | 18X | |
| Function | IR range | 9 led lambs 120m |
| IR control | Depend on the focal length | |
| Rotation range | Level：0°～360° Continuous rotation | |
| Vertical：-2°～90° Auto flip 180° auto flip | ||
| Preset point alarm | 255 point | |
| Auto mode | Preset point/preset point cruise/
horizontal scan/auto scan/path |
|
| Coaxial control | support | |
| Interface | Video outputInterface | 1Vp-p Composite Output(75Ω/BNC） |
| RS485
Protocols |
Half duplex mode Pelco-P, Pelco-D,self-adaptive | |
| General | Temperature | -20℃~＋65℃（Heater optional） |
| Humidity | 10%-90% RH | |
| Power supply | DC12V±10% | |
| Ingress Protection | IP66，TVS4000V Lightning-Proof and Anti-Surge | |
| Weight | Around 4.2Kg | |
| Dimension | Φ208mm*443mm |
