QT10-15 block for sale hollow bricks machine price cheap brick making machines

QT10-15 brick making machine characteristic

The production capacity depends on this forming machine and it is also the essential part of the whole production line. You can change moulds on this parts to make different shaps of blocks, bricks, colored-paving stones and curbs.

• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand  .

• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .

• about the switches ,we will use France Schneider or China CHNT

• Rakes in several rows make sure raw materials fed well-distributed.

• Hydraulic components we use Taiwan JiuGang famous brands.

• The demoulding synchronizer avoids the damage to concrete products.

• The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mould vibration box. And the down moulld ,there have one big vobration .when the scatter material work finish ,the hydraulic power with the two vibration power will assure the good quality for product

• The mould is processed with carburizing,nitriding, wolfram carbide and quenching which ensures its strength reach to 54~58 HRC and can be used 100 thousand times.

1. Main technical parameters

Dimension of host machine



3500x2300x2930mm Host machine power 44KW
Moulding area 1060×880mm Vibration force 100KN

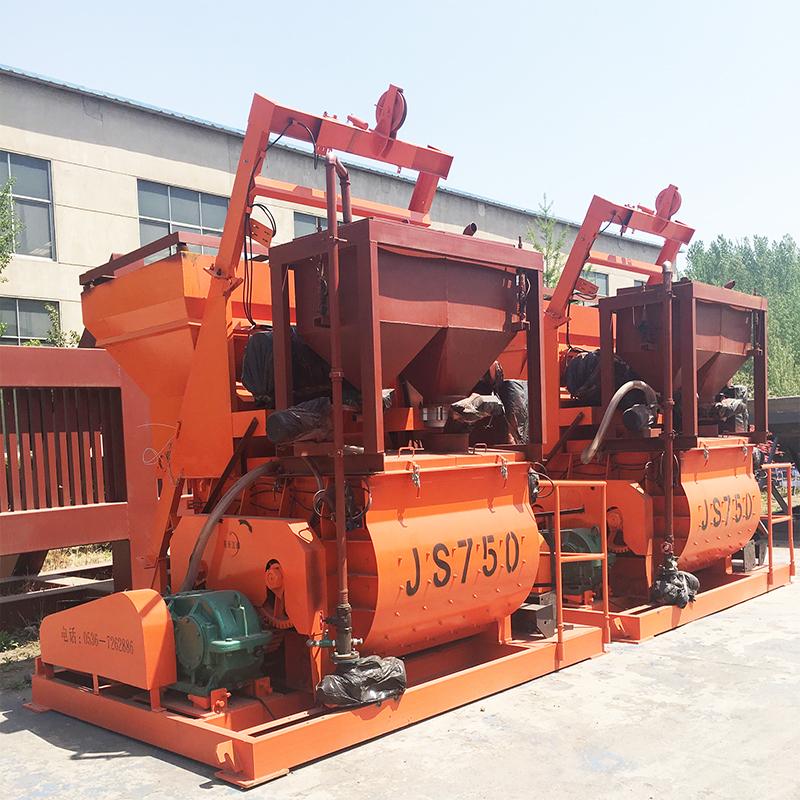

Moulding period 10-15S Mixer model JS750
The size of the pallet 1100×900×28mm General water Consumption 10-13T/every day
Weight of the host machine 10T Voltage 380V



2.Production capacity

Size(LxWxH) Pcs/Mould Pcs/ Hr Pcs/ 8 Hr
400X100X200 18 2700-3240 21600-25900
400X150X200 12 1800-2160 14400-17280
400X200X200 10 1500-1800 12000-14400
230X110X70 40 6000-7200 3800-57600
200X100X60 32 4800 38400
200X163X60 18 2700 21600





3.PL1200 Batching machine



No Item Specification
01 Type PL1200
02 Hopper store capacity 2500Lx3
03 Weighing hopper volume 1200L
04 productivity 56m3/h (dry material)
05 Batching accuracy +2%
06 Power 12KW
07 Feeding height 3000mm
08 Maximum weighing 2000kg
09 Store hopper mount 3
10 General dimension 8300x1950x3000mm
11 Machine weight 4100kg
