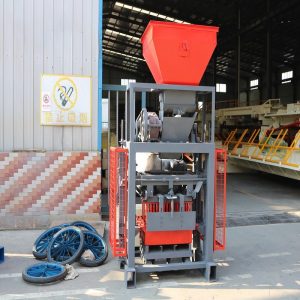

hollow price portable cement block machine brick making machines for sale

hollow price portable cement block machine brick making machines for sale manual block making machine



1. QT4-35A production capacity



No	Size(LxWxH)	Pcs/Mould	Pcs/Hour	Pcs/Shift
1	400x200x200mm	4	280-360	2240-2800
2	400x100x200mm	7	500-630	4000-5040
3	400x150x200mm	5	360-450	2880-3600
4	400x250x200mm	3	220-270	1760-2160





2. QT4-35A forming technical parameters

Dimension of host machine	1350×1460×1800mm	Host machine power	8.8KW
Moulding period	40S	Vibration force	33KN
The size of the pallet	850×450×25mm	Capacity	17.4KW
Weight of the  machine	About 2.5T	Mixer model	KQ350
Voltage	380V



3.KQ350 mixer



No.	Item	Specification
01	Model	JD350
02	Charge volume(L)	0.35 m3
03	Discharge volume(L)	0.56 m3
04	Capacity(m3/h)	≥4m3/h
05	Max diameter(pebbles/break stone)mm	40mm
06	power	7.5 KW
07	Machine diameter	1200mm
08	weight	0.42Ton



4.Belt conveyor:

Item	Specifaction
Length	6000mm
Width	500mm
Speed (m/min)	1.25 m/min
Specification (ton/hour)	30-40 ton/hour
power(kw)	1.1kw
