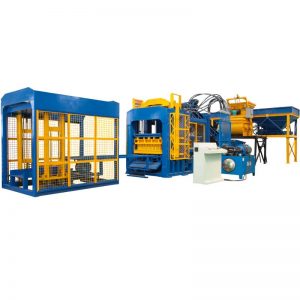

QT10-15 block for sale hollow bricks machine price cheap brick making machines

QT10-15 brick making machine characteristic

The production capacity depends on this forming machine and it is also the essential part of the whole production line. You can change moulds on this parts to make different shaps of blocks, bricks, colored-paving stones and curbs.

• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand  .

• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .

• about the switches ,we will use France Schneider or China CHNT

• Rakes in several rows make sure raw materials fed well-distributed.

• Hydraulic components we use Taiwan JiuGang famous brands.

• The demoulding synchronizer avoids the damage to concrete products.

• The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mould vibration box. And the down moulld ,there have one big vobration .when the scatter material work finish ,the hydraulic power with the two vibration power will assure the good quality for product

• The mould is processed with carburizing,nitriding, wolfram carbide and quenching which ensures its strength reach to 54~58 HRC and can be used 100 thousand times.

1. Main technical parameters

Dimension of host machine	3500x2300x2930mm	Host machine power	44KW
Moulding area	1060×880mm	Vibration force	100KN
Moulding period	10-15S	Mixer model	JS750
The size of the pallet	1100×900×28mm	General water Consumption	10-13T/every day
Weight of the host machine	10T	Voltage	380V



2.Production capacity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	18	2700-3240	21600-25900
400X150X200	12	1800-2160	14400-17280
400X200X200	10	1500-1800	12000-14400
230X110X70	40	6000-7200	3800-57600
200X100X60	32	4800	38400
200X163X60	18	2700	21600





3.PL1200 Batching machine



No	Item	Specification
01	Type	PL1200
02	Hopper store capacity	2500Lx3
03	Weighing hopper volume	1200L
04	productivity	56m3/h (dry material)
05	Batching accuracy	+2%
06	Power	12KW
07	Feeding height	3000mm
08	Maximum weighing	2000kg
09	Store hopper mount	3
10	General dimension	8300x1950x3000mm
11	Machine weight	4100kg
