Chinese Shutter Door Roll Forming Machine

Type:

Chinese Shutter Door Roll Forming Machine



Product Description:

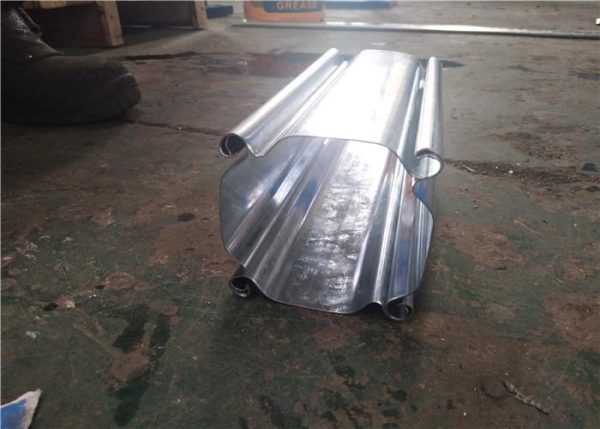

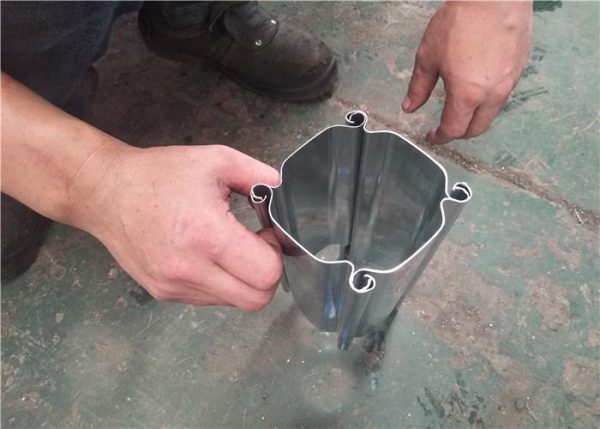

The product produced by Shutter Door Roll Forming Machine is used for factory workshop doors and other shop doors. It is convenient for installation, low-noise and easy for maintenance.



Main Technical Parameters:

Technical Parameter	Description
Material Thickness	0.8-1.2mm
Material Width	174mm
Effective Width	105mm
Forming Station	14 steps
Motor power	3Kw
Weight	2000KG



Whole Producing Line Component:

1)      1.2tons decoiler

2)      Roll forming machine

3)      Hydraulic cutting device

4)      Product rack for collecting products

5)      PLC control box
