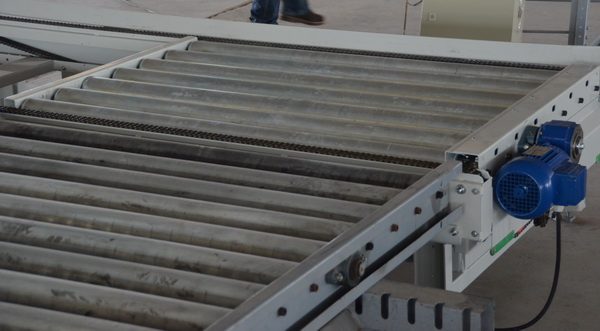

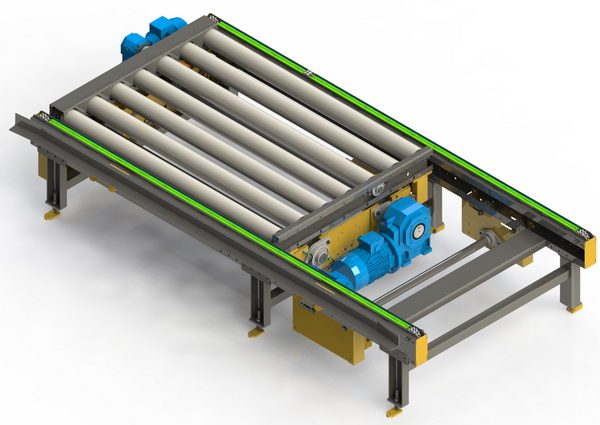

DRC Cross- Chain Conveyors
The DRC family features a flexible and reliable all electric system using R89DS galvanized 89 mm rollers mounted on a precision made frame. Rollers are set low for guided transport of goods smaller than the conveyor’s nominal width. A mechanism raises or lowers the rollers
The frame can accept many accessories such as guide rails, end stops, and can also be coupled through butt coupling plates to other conveyors such as the RDS family of live roller conveyors, and CHT heavy duty chain conveyors.

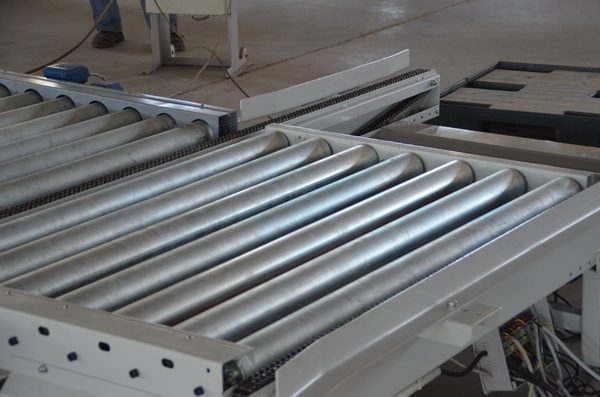

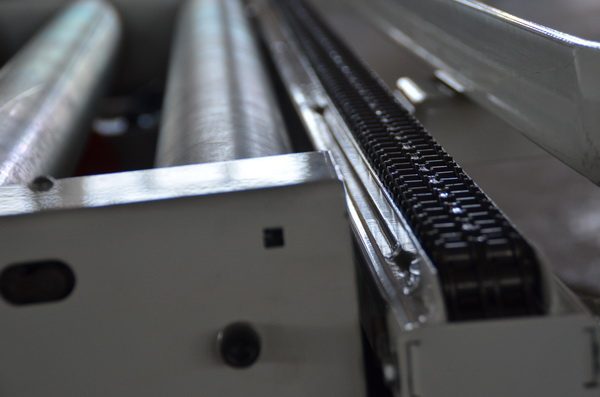

The DRC family of conveyors uses R89DS rollers with female threaded shafts and a chain conveyor mounted at 90 degrees to the roller conveyor axis..
The heavy duty precision side frames are made of heavy gauge sheet metal.

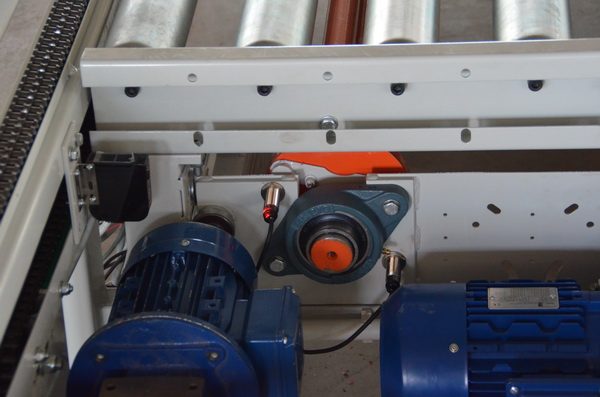

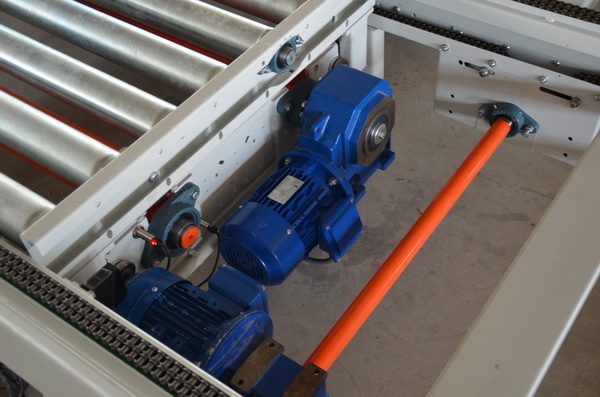

A mechanical raising and lowering mechanism will deposit the load on the cross-chain conveyor and clear the undersurface for the pallet to move in the perpendicular direction..
These heavy duty conveyors are used for changing the direction of unit goods such as pallets, boxes, cartons, unit loads with a flat contact surface in warehouses and production floors.
They are usually used in conjunction with RDS live roller conveyors and CHT chain conveyors and operate under the control of a PLC controller fitted with the appropriate sensors and interlocks..
for more information : http://unitelegypt.com/index.php/en/products/special-conveyors
