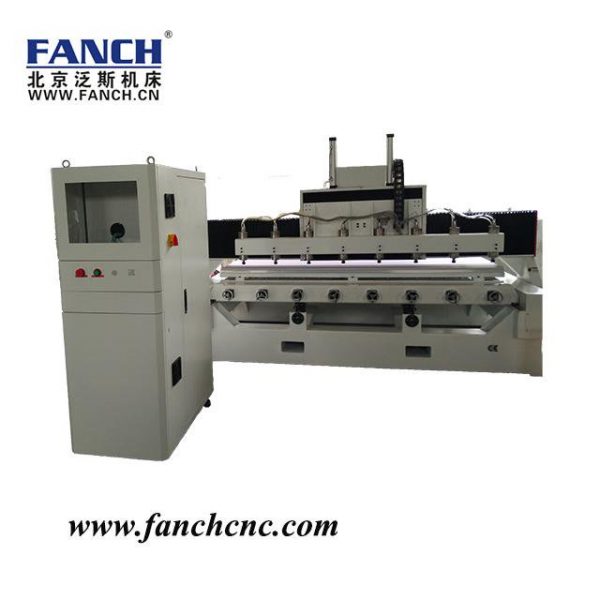

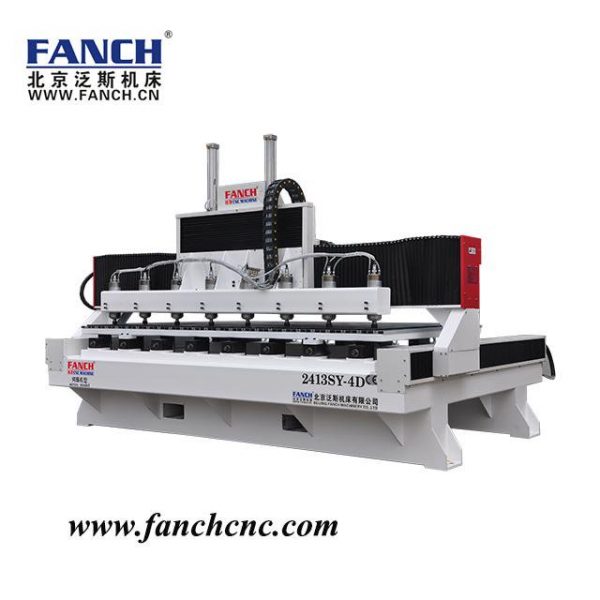

Factory price CNC router 2413SY / 4 axis CNC router / 3D CNC router

Model: FC-2413SY-4D China Eight 2.2KW Water Cooling Spindles



Product Description

CNC Carving Machine for wood and softmetal

Wood Engraving Machine

CNC wood sculpture machine



Application&Samples

Materials: Wood, Solid Wood
Industries: Chair Legs, Roman Columns, Handrails



Specification



Working area for single spindle 300*1300mm
Max. height for single spindle 300mm
Z axis travel 325mm
Spindle power 2.2KW *8
Working speed 12m/min
Resolution 0.025mm
Command language G code .uoo.mmg.plt
Software running environment Windows98/2000/XP
Working voltage AC220V/50Hz/3Phase
Spindle speed 6000-24000rpm/min
Work mode Japan servo, ball-screw transmission

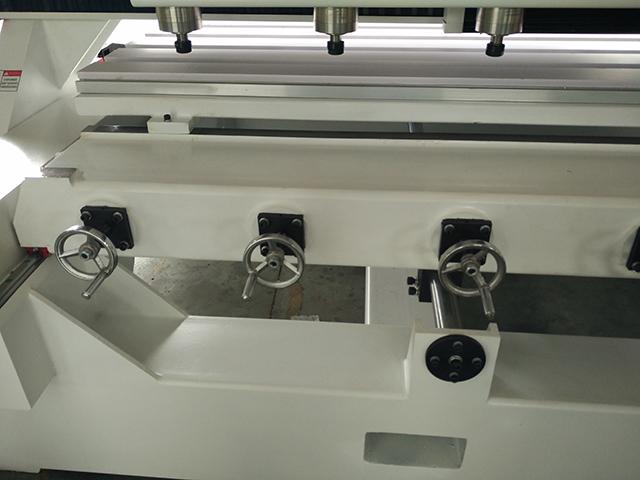

Clamping Manual fixture clamping
Control system NC Studio
Dust proof Dust proof for X/Y/Z axis
Structure Seamless welded steel structure
Weight 1500KGS



Features



Machine Bed: High-quality steel structure welding seamless

Machine Parts: Aluminum casting

Spindle: Eight China 2.2KW water-cooling

Drive System: Japan Panasonic servo

Control System: Shanghai NC Studio

Linear Guide Rail: Taiwan HIWIN/PMI 30mm (X/Y axis) and 25mm (Z axis)

Rack and Pinion: Taiwan XINYUE (X/Y axis)

Ball Screw: Taiwan TBI (Z axis)

Working Table: T-slot with aluminum

Electrical Components: French Schneider, Taiwan AirTAC



Spare Parts

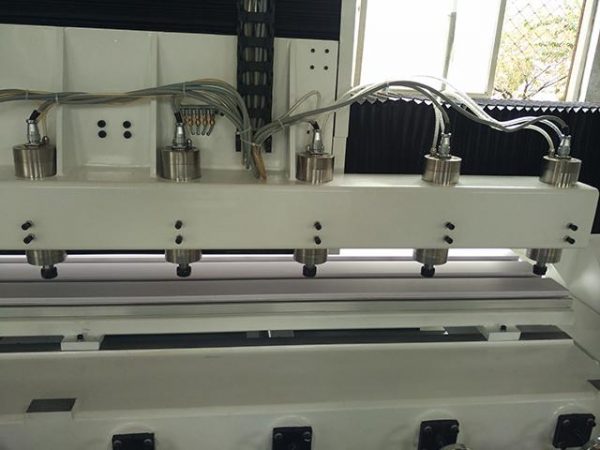

Spindle

Name: Main Spindle

Brand: HSD

Original: Italy

Original Italy imported spindle 6.0KW, it promise more accurate, higher working efficiency. We can increase and reduce spindle numbers according to customer’s need.

Motor

Name: Spindle motor
Brand: Yaskawa
Original: Japanese
It can provide strong power and long life span. Panasonic and Chinese top brand motor are optional.

Servo

Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

Helical rack

Name: Helical rack
Brand: Fengmao
Original: Germany/Taiwan
Brand famous rack can promise the accuracy of X.Y.Z Stroke repeat position, so that the more accurate of woodworking.

Control system

Name:  SYNTEC Control system
Brand: SYNTEC
Original: Taiwan

NC studio system is optional.

Inverter

Name: Delta inverter

Brand: Delta

Original: Taiwan

Top brand inverter ensure the stability of working process. SUNFAR inverter is optional.

Linear rail

Name: Linear rail

Brand: HIWIN/PMI

Original: Taiwan

Automatic lubrication rail, free maintenance.

Reducer

Name: Planetary reducer

Brand: Neugart

Original: Germany

Good quality reducer can help to improve the repeat position accuracy. Japanese Shimpo and Taiwan APEX are optional.

Electric components

Name: Electric components

Brand: Schneider

Original: French

Taiwan AirTAC is optional.

Factory

Factory

Woodworking Machine

Located in Tongzhou district, Beijing, Fanch woodworking factory was established in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

  Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and

domestic sales office  can be found here.

Our Services

Pre-sale service

1. Free engineer consultant and feedback in 24 hours.

2. Sample specimens and testing video of specified machine are available.

3. Factory visit arrangement.



After-sale service

1. Prompt reply in 24 hours.

2. Engineer on-site installation.

3. Call-in Remote diagnosis.

4. Engineer oversea service.

5. Operation training service.



Customized service

1. OEM/ODM service are available.

2. Free engineer consultant

3. Engineer on-site installation and debugging.

4. Operation training service
