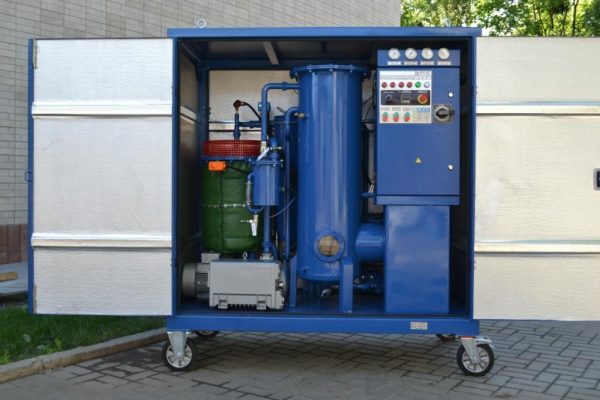

GlobeCore Turbine Oil Purification Plant CMM 4T

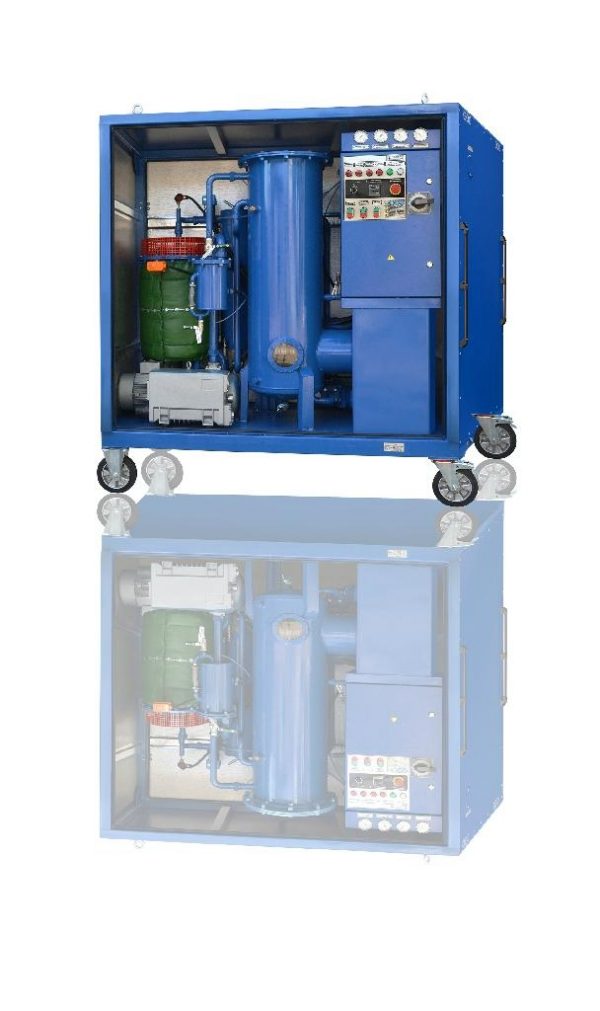

GlobeCore CMM 4T – Oil Purifier designed for removal of solid particles and free and dissolved water from industrial oils. Use of Racshig Rings in the vacuum column makes it ideal for “on-line” and “off line” treatment of turbine oil. CMM 4T is offered as stationary unit or on castor wheels for better mobility. Optional equipment includes flowmeter with totalizer and 1 micron fine oil filter.
№      Specifications           Value
1 Production capacity, m3/h: 4
2 Oil Temperature, °С 30-100
3 Treated Oil Parameters:
– moisture content,ppm, (maximum) 10
– purity Class (ISO 4406), minimum 9 (-/15/12)
4 Nominal Filtration Rate, mkm 5-20
5 Outlet Pump Head, m 20
6 Heater power consumption, kW, (maximum) 33
7 Total power Consumption, kW 38
8 Electrical Outlet Parameters 50/60 Hz, V 380/220
9 Dimensions, mm, (maximum) length/width/height, mm 1600/1150/1820
10 Weight, kg, (maximum) 1200
