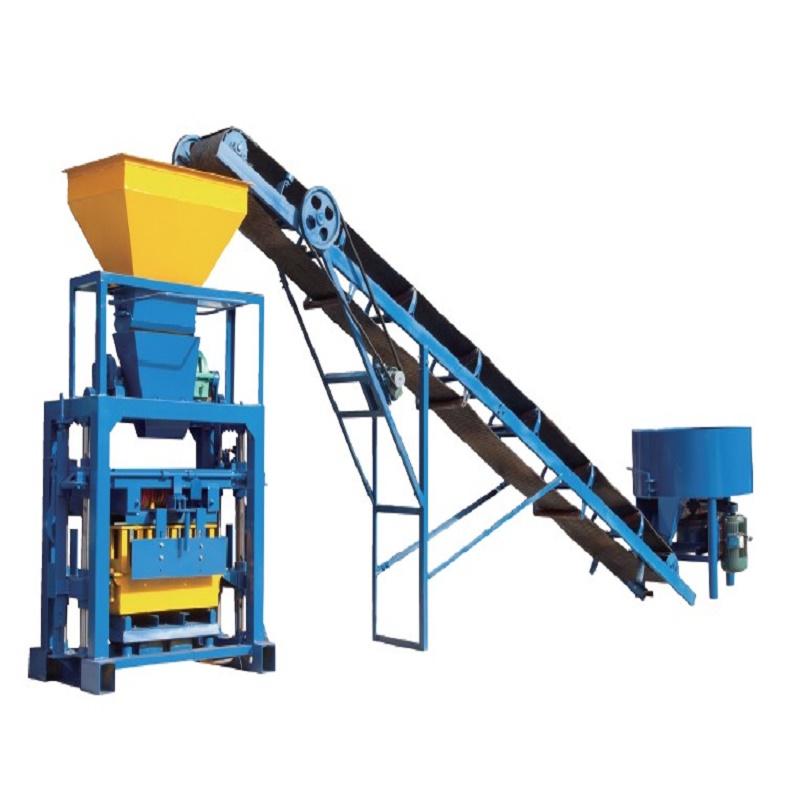

hollow price portable cement block machine brick making machines for sale

hollow price portable cement block machine brick making machines for sale manual block making machine



1. QT4-35A production capacity



No Size(LxWxH) Pcs/Mould Pcs/Hour Pcs/Shift
1 400x200x200mm 4 280-360 2240-2800
2 400x100x200mm 7 500-630 4000-5040
3 400x150x200mm 5 360-450 2880-3600
4 400x250x200mm 3 220-270 1760-2160





2. QT4-35A forming technical parameters

Dimension of host machine 1350×1460×1800mm Host machine power 8.8KW
Moulding period 40S Vibration force 33KN
The size of the pallet 850×450×25mm Capacity 17.4KW
Weight of the  machine About 2.5T Mixer model KQ350
Voltage 380V



3.KQ350 mixer



No. Item Specification
01 Model JD350
02 Charge volume(L) 0.35 m3
03 Discharge volume(L) 0.56 m3
04 Capacity(m3/h) ≥4m3/h
05 Max diameter(pebbles/break stone)mm 40mm
06 power 7.5 KW
07 Machine diameter 1200mm
08 weight 0.42Ton



4.Belt conveyor:

Item

Specifaction

Length 6000mm
Width 500mm
Speed (m/min) 1.25 m/min
Specification (ton/hour) 30-40 ton/hour
power(kw) 1.1kw
