Manual pad printer

Usage: Manual pad printer can print pen, IC, keyring, electronics, cosmetic, stationery, small plastic, toys, glass, metal, leather, wood, ceramic such small things,



Single color manual pad printer is very popular fro family workshop and small company.





HC-PM-3434 is the smallest and cheapest pad printer in our factory, we exported thousands of this simple pad machine to Asia, South America and Africa, especially during the economic crisis.



Specification:

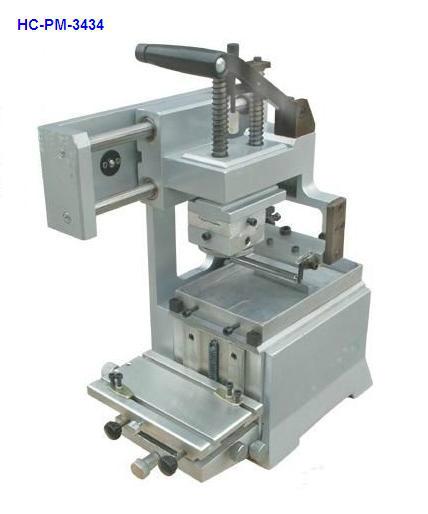

HC-PM-3434   Manual pad printing machine

1. 1)      Max print size: 3.4*3.4 inch（85*85mm）
2. 2)      Max worktable size: 4*4 inch（100*100mm）
3. 3)      Max print speed: 500pcs/Hour
4. 4)      Horizontal stroke:4 inch (100mm)
5. 5)      Vertical stroke of the rubber pad:2.3 inch(60mm)
6. 6)      Print repeatability precision: 0.0012 inch(0.03mm)
7. 7)      Net weight: 24kg



HC- PM-3453

1. 1)        Max print size: 3.4*5.3 inch（85*135mm）
2. 2)        Max worktable size:4*6 inch（100*150mm）
3. 3)        Max print speed: 500pcs/Hour
4. 4)        Horizontal stroke:4 inch (100mm)
5. 5)        Vertical stroke of the rubber pad:2.3 inch(60mm)
6. 6)        Print repeatability precision: 0.0012 inch(0.03mm)
7. 7)        Net weight: 26kg



Features:

1. 1)        Cheap price and widely use.
2. 2)        Without electricity, saved energy and money.
3. 3)        Cast aluminum structure and silver paint.
4. 4)        Simple structure, easy operate and convenient to carry.
5. 5)        One color printed by one time, multi colors by multi times.
6. 6)        Manual mini pad printer is very suitable for make sample print and small lot production.





Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year





Packing:       by carton or wooden case

Packing size: 240×460×490mm

Packing volume: 0.05 CBM

Gross weight: 26KG





Machine Fittings for free:

1)        One pad

2)        One doctor blade

3)        One steel plate

4)        One set. of tool box

5)        Operation instruction in English







 Please click here to see the video http://youtu.be/3ybRuqMtjxI

http://youtu.be/9UzN8kB_-_4
