Membrane Press Machine with negotive and positive pressure,SHZFY2500HX2

SKU: SHZFY2500HX2

999 0
توتال - TOTAL
Add to Wishlist
Compare

EGP1.00

Sabtiya.com Stores



Sabtiya.com Stores المزيد من منتجات

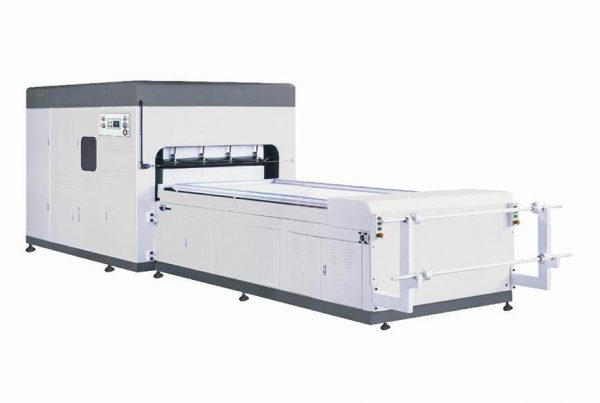

Membrane Press Machine
Model SHZFY2500HX2
Working table size 2550x1250x40mm
Total power 57.2Kw
Hoting power up hoting 36Kw, down hotting 12Kw
Feeding motor power 0.75Kw*2
Hydraulic motor power 5.5Kw
Vacuum pump motor power 2.2Kw
Vacuum  -0.1Mpa
Positive pressure 0.4Mpa-0.5Mpa
Negative  -0.8Mpa
Air pressure 0.6-0.8Mpa
Max. Working temperature 180℃
Vacuum pump air speed 63m³/h
Oil cylinder dia. and

quantity

 Φ140mm*6
Hoting style Heat conducting oil heating (up),

aluminum plate electric heating (down),

high heat dissipation electric heating

tube (air heating)
Control system PLC control
Electrical 380V,50Hz，3PH，4*15mm² electrical wire
Overall dimensions 11000x2250x2050mm
Weight 11000KGS
