MINI DC12V/24V 8M head Brushless mini cooler water pump DC40D


1328 0
MPT إم بى تى

EGP1.00 Stores Stores المزيد من منتجات

DC40D Series

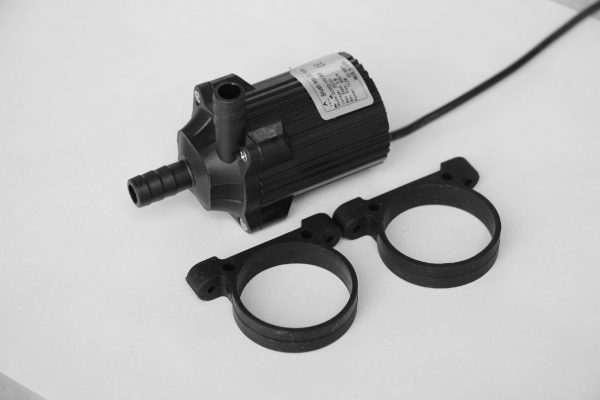

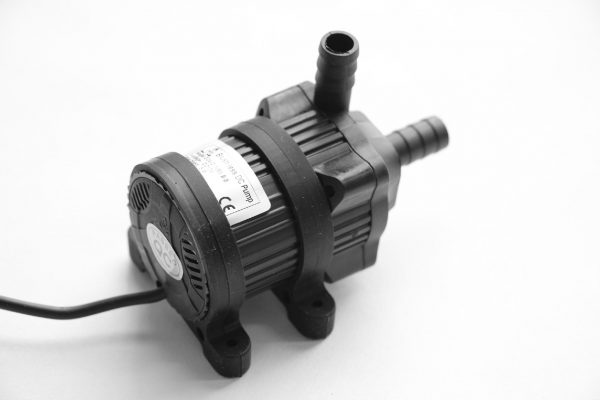

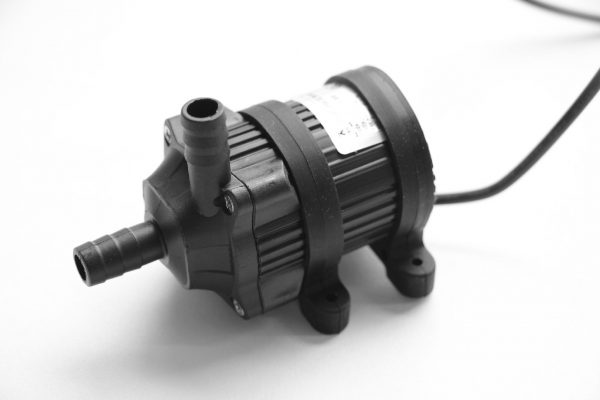

Product Appearance


NO. Item Specs
1 Dimension and weight 90mm*60.8mm*41.5mm;220g
2 Installation dimension 90mm*64mm*56mm;
3 External diameter of outlet 10mm
4 External diameter of inlet 10mm
5 Driving mechanism Brush-less, magnetic isolated design
6 Material of pump shell ABS,PES/SPS/PPS/PA66+30%GF (Optional)
7 Condition of use Can continuously work, submersible or land use (not self-priming)
8 Suitable medium Water, oil, or normal acid/ alkaline liquids
(Pre-test needed for special liquid)
9 Max working temperature 60℃
10 Power consumption 2.5W~28.8W(can be customized within this range)
11 Rated voltage 12Vdc or 24Vdc
12 Working voltage range 5Vdc ~ 12Vdc (Max 14V )or 5Vdc ~ 24Vdc(Max 26V)
13 Max load current 1.2A
14 Max horizontal flow rate 10L/MIN
15 Max static lift 8M
16 Noise class <40dB
17 Waterproof class IP68(suitable for submersible installation)
18 Life span > 30,000hrs
19 Power supply Suitable for solar panel, batteries, adapter or other power source
20 Protection function dry-run protection, stuck protection(customized function)
21 Power regulation function Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)
22 Feature
  • small size with high efficiency,maintenance-free
  • Use ceramics shaft and carbon fiber sleeve
  • Completely water proof (IP68)
  • Brush-less dc control without pollution, long life span
  • OEM and ODM service accept
  • Offer Pump related control system design


Pump Structure

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No. Voltage Max load current Max static lift Max flow rate Power consumption
V(dc) A M  L/H w
DC40D-1250 12 1.1 5.0 450 13.2
DC40D-2480 24 1.1 8.0 550 26.4
  • Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.
  • When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).
  • The head means the Max vertical lifting height of water,the flow is 0L/[email protected] head.
  • The max flow rate means flow rate with no lifting height(according to the curve bellow)


Flow rate-Head Curve

Dimensions of pump
