OHD Overhead Powered Conveyors

Features

The simple and proven construction of the OHD family of overhead conveyors consists of special tracks that house a chain fitted with wheels. Tracks can be made to change direction, thus offering a flexible solution to handling problems requiring overhead conveyors.

Characteristics

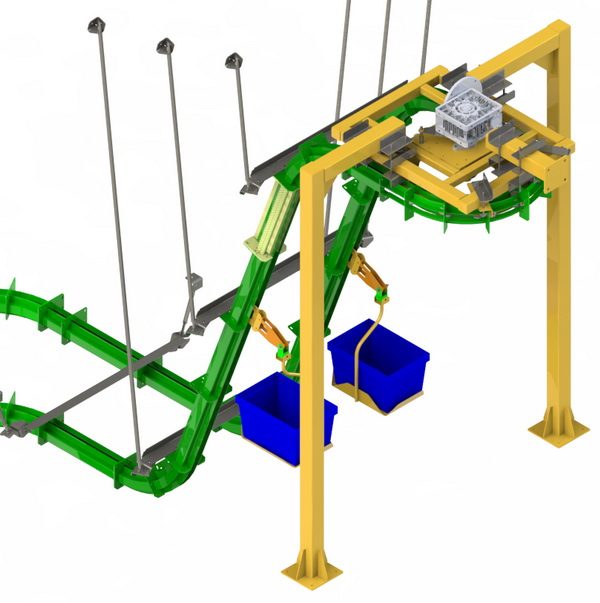

Overhead conveyor chains run inside suspended tracks. The tracks are either self-supporting for light loads or hanging from an I-beam steel profile for heavier loads.

Tracks have accessories such as vertical curves or horizontal curves of 30, 60 or 90 degrees.

Other components include tension frames, track openings for loading chains and variable length sections for track length tuning.

The tracks and supports can follow complex closed paths, covering a wide area even across floors.

Optionally the conveyors could be fitted with a bus-bar running parallel to the tracks in order to power moving loads. The suspended frames can be supplied with electric power through special electric brush carts running inside special power distribution bus bars.

Applications

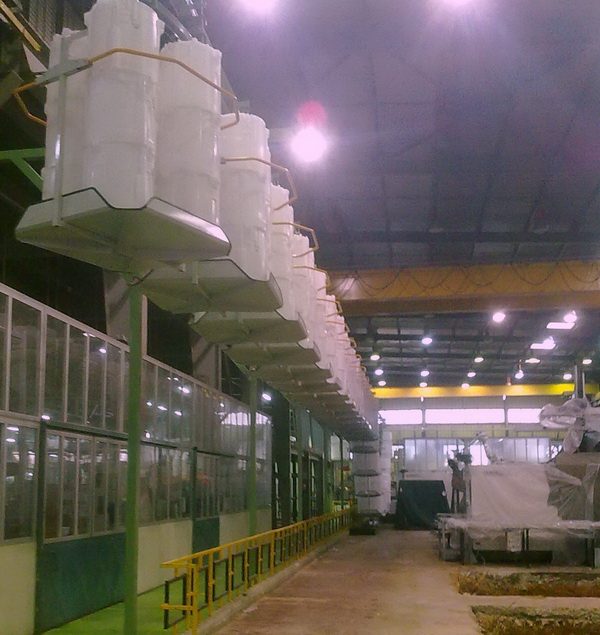

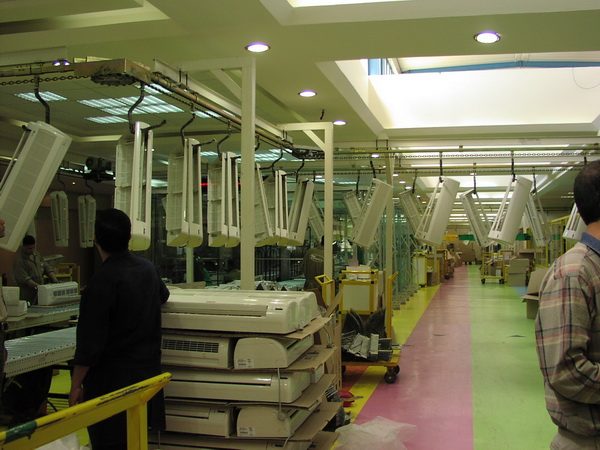

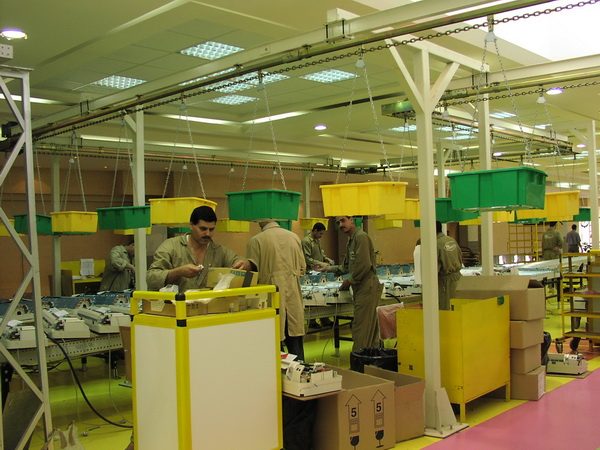

OHD Overhead conveyors are used in assembly lines, paint lines, processing lines, and find wide use in warehouses or production floors

They can carry weights of several hundred kilograms, and can be made to change directions both in the horizontal or vertical planes easily.

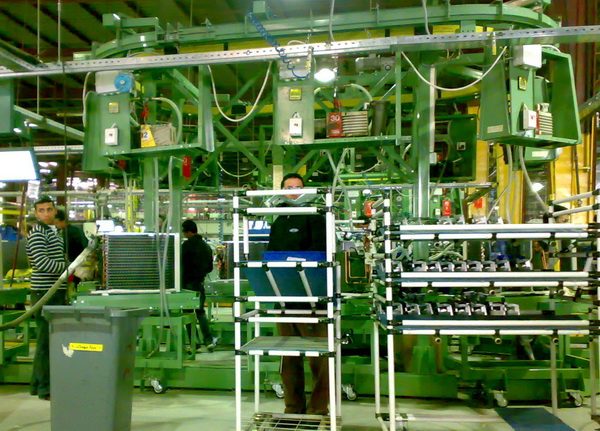

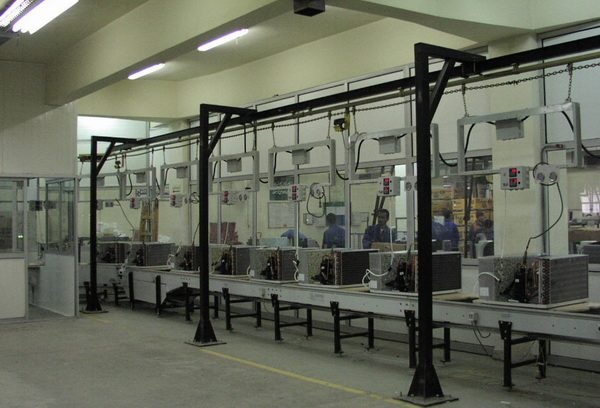

Overhead conveyors type OHD carrying test equipment for example, can be synchronized with chain conveyors CHA to perform electrical testing while the items are moving along the assembly line.
