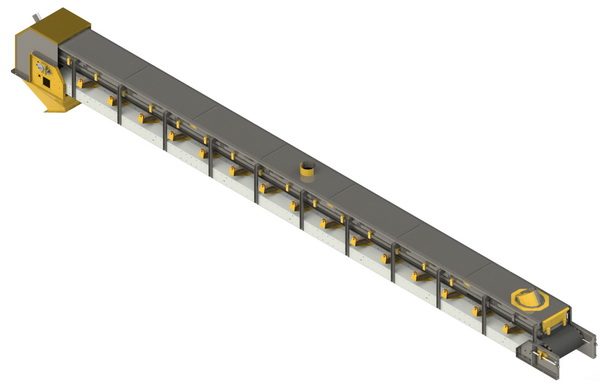

TR-2 & TR-3 Bulk Materials Conveyors

Features

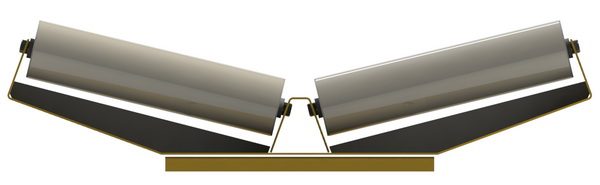

TR-2 trough conveyors use a 2 rollers support for belt widths up to 500 mm.

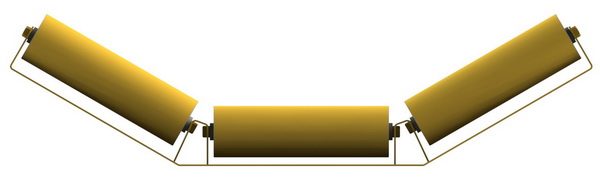

TR-3 trough conveyors use a 3 roller support for widths from 650 mm to 1200 mm

The rubber belts are welded by hot vulcanizing and can have a smooth or chevron top surface.

Adjustable rollers support and return rollers make belt tracking easy to perform.

Belt take-up and tensioning is easy to do through power screws in the tail unit. Other belt tension units are available upon request.

Characteristics

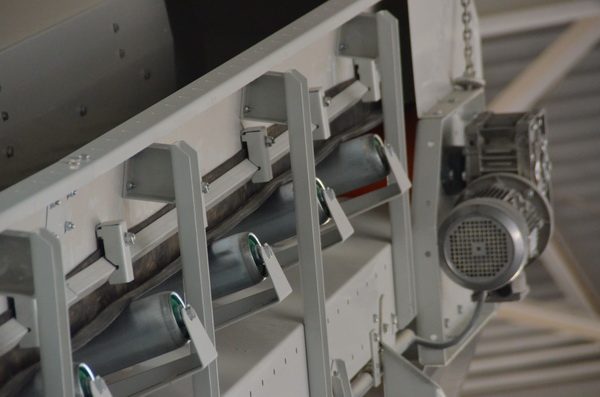

Rollers are installed on adjustable rollers supports, mounted on a sturdy sheet metal frame.

Rollers are 89 mm in diameter, and triple sealed against dust and permanently greased for extended service in adverse conditions.

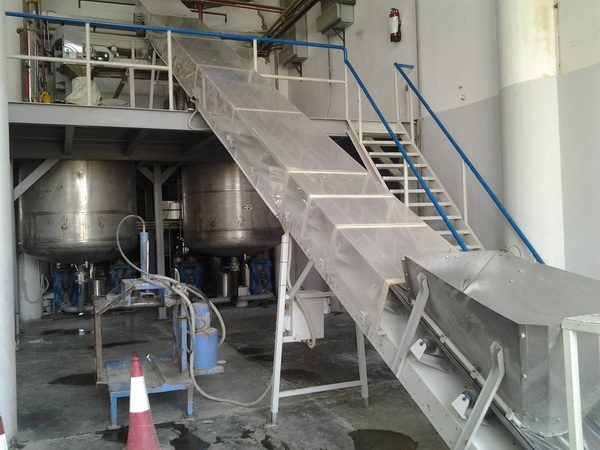

These conveyors accept several accessories and options such as dust hoods, side skirts, loading hoppers and special supports

Applications

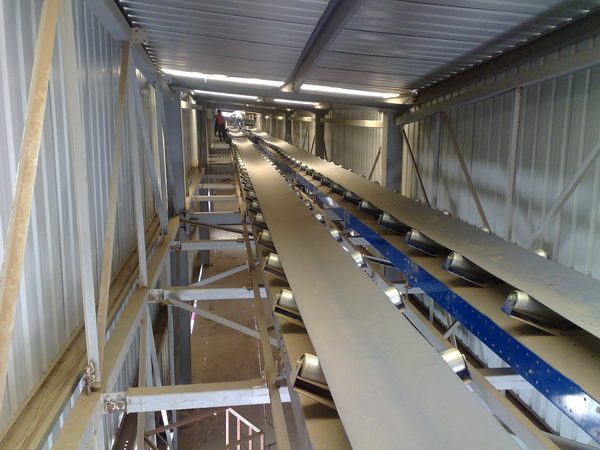

The TR-2 and TR-3 trough conveyors are mainly used for transporting bulk materials in cement, fertilizers, chemical industries, paper industry, food industry and also to transport unit goods such as sacks, and parcels, where it is important to confine them to the center of the conveyor without guides.

These conveyors can be used for lengths of up to 50 meters. Other lengths are custom designed. Please contact UNITEL
