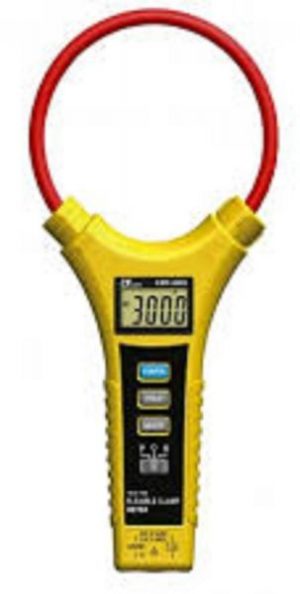

■ Flexibility facilitating conductor clamping even in narrow space
■ AC current measurable max. 3000A
■ True RMS■ Data hold, Max/Min value hold
■ BacklightSampling rate : approx. 2 times / sec.
تشاهد 1–24 من94 النتائج
DC Voltage: 400mV / 4V / 40V / 400V / 600V
– best accuracy: +/- (0.8%+1)
AC Voltage: 4V / 40V / 400V / 600V
– best accuracy: +/- (1%+5)
DC Current: 40A / 400A
– best accuracy: +/- (2%+3)
AC Current: 40A / 400A
– best accuracy: +/- (2.5%+5)
Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
-best accuracy: +/- (1%+2)
Frequency: 10Hz – 1MHz
– best accuracy: +/- (0.1%+3)
Duty cycle: 0.1% ~ 99.9%
Voltage LED Steps (AC/D):
– 12 V (between 0 to 12 V LED will illuminate)
– 24 V (between 19 V +/- 2 V LED will illuminate)
– 50 V (between 48 V +/- 6 V LED will illuminate)
– 120 V (between 110 V +/- 20 V LED will illuminate)
– 230 V (between 200 V +/- 20 V LED will illuminate)
– 400 V (between 340 V +/- 30 V LED will illuminate)
– 690 V (between 520 V +/- 30 V LED will illuminate)
Continuity test: Range 0 to 100 kOhm. The continuity LED will illuminate and buzzer will sound
Phase Rotation Test: 50Hz to 60Hz
Range Selection: Automatic
Polarity Detection: Positive & Negative
Low Battery Display: Short circuit two leads, LED and beeper do not on that means the battery is low
Torch: Yes
Single Lead (L2) Voltage Detection: It is intended only as a quick check. 100V to 690V, 50Hz to 400Hz
Short Circuit Detection: Yes
GENERAL CHARACTERISTICS:
Power: 2x 1.5 V battery (AAA)
LCD display (AC/DC): 24V to 690V (+/- 3%+5)
Product Net Weight: 210 g
Product size: 275 x 51 x 30 mm
CURRENT, VOLTAGE, Type K CALIBRATOR
Model : CC-423
* CURRENT CALIBRATOR :
1. Current source: 0 to 24 mA
2. Current measurement : 0 to 24 mA.
3. Power ( 12V ) and current measurement of two wires loop.
4. Resolution : 0.01 mA.
* VOLTAGE CALIBRATOR :
DC mV source: -199.9 mV to +199.9 mV.
* Type K CALIBRATOR :
1. Type K thermocouple calibrator.
2. Type K Thermocouple thermometer.
3. -199 oC to 1230 oC , -325 oF to 2246 oF.
4. oC/oF, Resolution : 0.1 degree.
* Power :
1.5V ( UM-3/AA ) battery x 6 PCs or DC 9V adapter in.
* Housing case with tripod fix nut structure.
* Optional type K Temp. probes :
TP-01, TP-02A , TP-03, TP-04, TP-05.

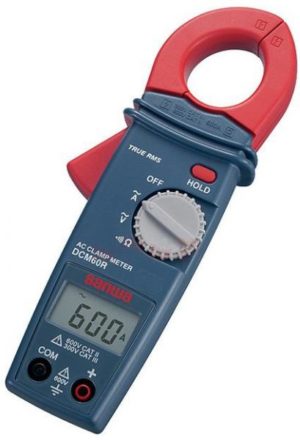

ACA | 199.9/600A | ±(2%+5)(50~60Hz) | 0.1A |
±(2.9%+5)(60~400Hz) | |||
ACV | 199.9/600V | ±(1.5%+5)(50~400Hz) | 0.1V |
Resistance | 199.9Ω | ±(1.0%+8) | 0.1Ω |
Continuity | Buzzer sounds at less than approx. 100Ω Open voltage : approx.1.0V | ||
Bandwidth | 50~400Hz | ||
Display | 1999 | ||
Clamp diameter/ | 25mm / 10 x 30mm |
